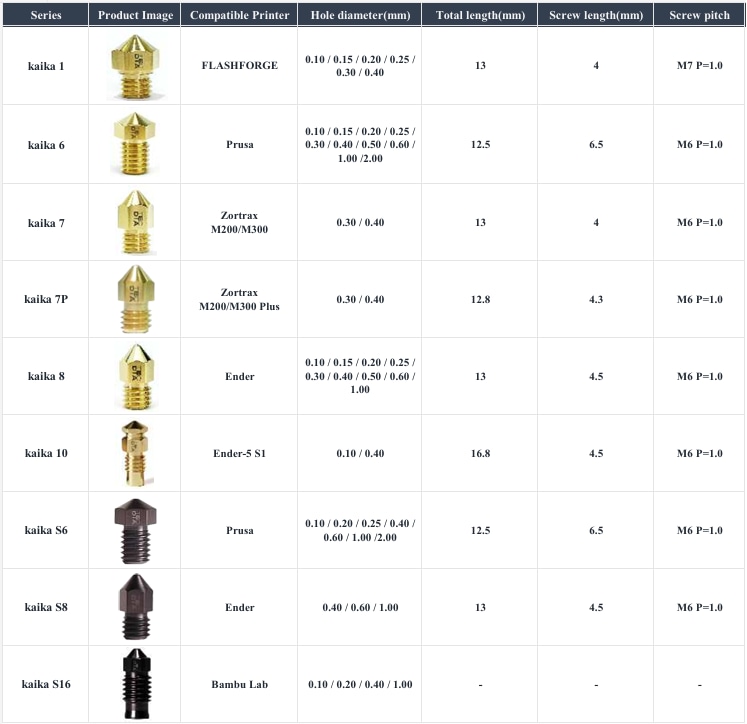

Product Lineup
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯

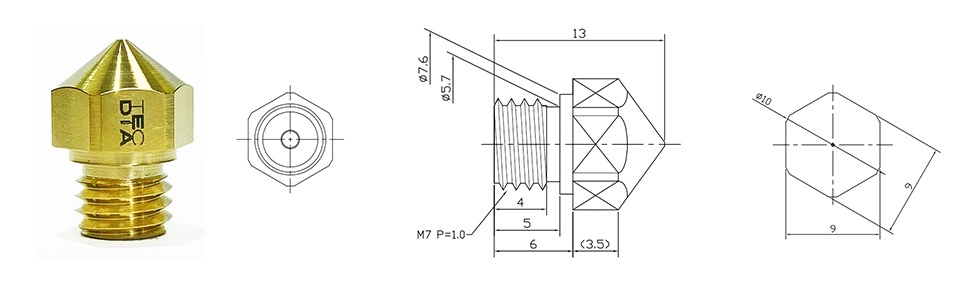

kaika1 Series
《FLASH FORGE, more》The Tecdia original shape that does have a Teflon tube insert, allowing the filament to be sufficiently melted.
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯

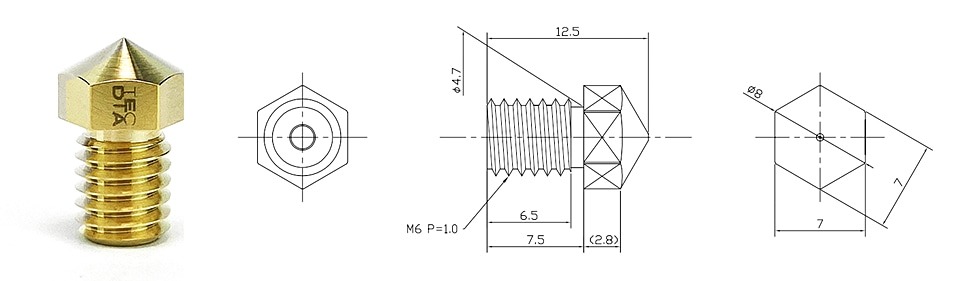

kaika6 Series
《Prusa, more》30 degree sharp inner diameter taper angle. Outer diameter is set to 120 degrees instead of 60 degrees to improve the leveling (ironing) effect and mitigates the impact of the tip, while also securing sufficient heat capacity.
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯

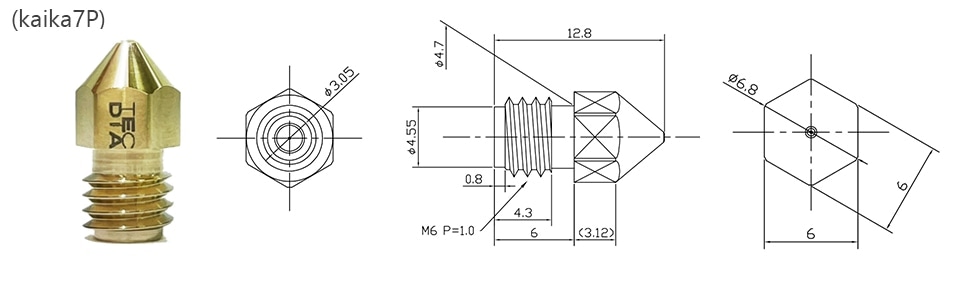

kiaka7 Series
Lineup two types of thread shapes. Please select according to your device.
《Zortrax(M200/M300)》
《Zortrax(M200Plus/M300Plus)》
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯

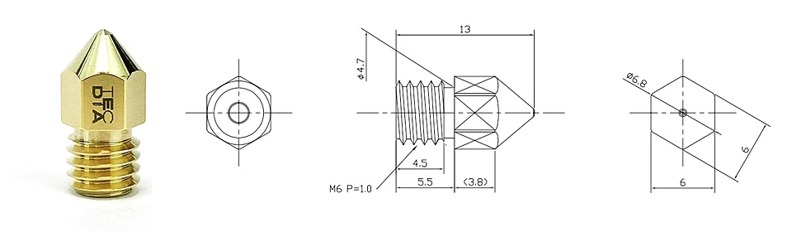

kiaka8 Series
《Creality Ender Printers》Featuring a unique dual-taper tip design with an 80° outer taper and a 120° tip angle, the kaika8 Series helps absorb impact at the nozzle tip while ensuring sufficient thermal capacity for stable extrusion.
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯
kaika10 Series
《Ender-5 S1, more》The 120 degree outer taper provides excellent heat retention while adhering to the kaika design ethos.
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯

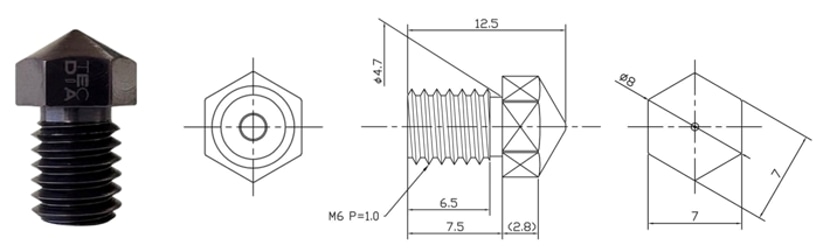

kaikaS6 Series
《Prusa, more》Combining carefully selected Japanese hardening technology with the unique kaika geometry, these nozzles are manufactured from high-strength tool steel to deliver outstanding extrusion performance and wear resistance.
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯

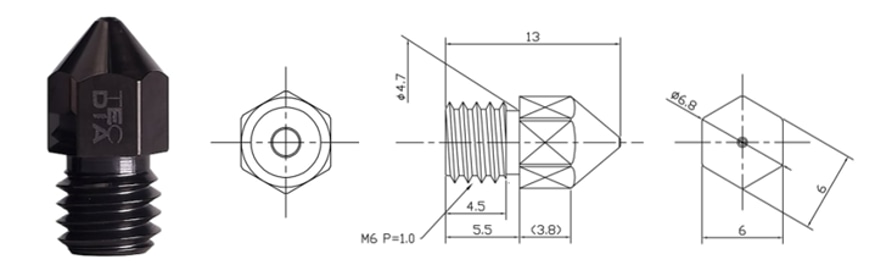

kaikaS8 Series
《Creality Ender Printers》Combining carefully selected Japanese hardening technology with the unique kaika geometry, these nozzles are manufactured from high-strength tool steel to deliver outstanding extrusion performance and wear resistance.
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯

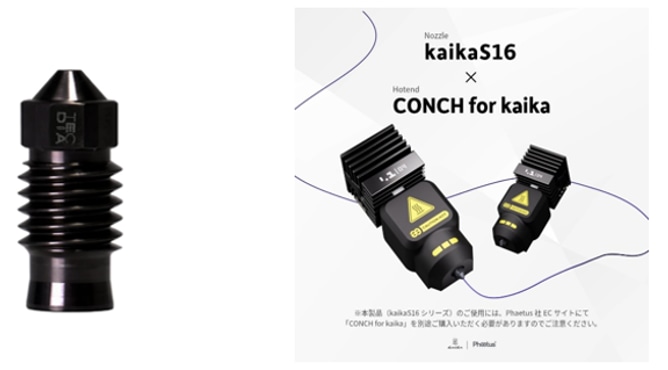

kaikaS16 Series
《Bambu Lab Printers》Engineered with carefully selected Japanese hardening technology, the unique kaika geometry, and high-strength tool steel, the kaikaS16 Series features a 30° tapered internal geometry and high-precision internal machining to improve material flow and ensure smooth, stable extrusion—even with abrasive engineering materials.
⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯
kaika Installation Track Record
